Solver of the adjoint to the eikonal PDE. More...

Collaboration diagram for adjointEikonalSolver:

[legend]

Public Member Functions
	TypeName ("adjointEikonalSolver")
	Runtime type information. More...

	adjointEikonalSolver (const fvMesh &mesh, const dictionary &dict, const autoPtr< incompressible::RASModelVariables > &RASModelVars, incompressibleAdjointVars &adjointVars, const labelHashSet &sensitivityPatchIDs)
	Construct from components. More...

virtual	~adjointEikonalSolver ()=default

virtual bool	readDict (const dictionary &dict)
	Read dict if changed. More...

void	accumulateIntegrand (const scalar dt)
	Accumulate source term. More...

void	solve ()
	Calculate the adjoint distance field. More...

void	reset ()
	Reset source term. More...

boundaryVectorField &	distanceSensitivities ()
	Return the sensitivity term depending on da. More...

tmp< volTensorField >	getFISensitivityTerm () const
	Return the volume-based sensitivity term depending on da. More...

const volScalarField &	da ()
	Return the adjoint distance field. More...

const volScalarField &	d ()
	Return the distance field. More...

tmp< volVectorField >	gradEikonal ()
	Return the gradient of the eikonal equation. More...

Protected Member Functions
wordList	patchTypes () const
	Return the boundary condition types for da. More...

tmp< surfaceScalarField >	computeYPhi ()
	Compute convecting velocity. More...

void	read ()
	Read options each time a new solution is found. More...

Protected Attributes
const fvMesh &	mesh_

dictionary	dict_

const autoPtr< incompressible::RASModelVariables > &	RASModelVars_

autoPtr< Foam::incompressibleAdjoint::adjointRASModel > &	adjointTurbulence_

const labelHashSet &	sensitivityPatchIDs_

label	nEikonalIters_

scalar	tolerance_

scalar	epsilon_

labelHashSet	wallPatchIDs_

volScalarField	da_

volScalarField	source_

autoPtr< boundaryVectorField >	distanceSensPtr_
	Wall face sens w.r.t. (x,y.z) More...

Detailed Description

Solver of the adjoint to the eikonal PDE.

Reference:

    For the development of the adjoint eikonal PDE and its boundary
    conditions

        Papoutsis-Kiachagias, E. M., & Giannakoglou, K. C. (2014).
        Continuous Adjoint Methods for Turbulent Flows, Applied to Shape
        and Topology Optimization: Industrial Applications.
        Archives of Computational Methods in Engineering, 23(2), 255-299.
        http://doi.org/10.1007/s11831-014-9141-9

To be as consistent as possible, it is recommended to use the advectionDiffusion wallDist method in fvSchemes, instead of the more widely used meshWave

Example of the adjointEikonalSolver specification in optimisationDict:

    optimisation
    {
        sensitivities
        {
            includeDistance true;
            adjointEikonalSolver
            {
                // epsilon should be the same as the one used
                // in fvSchemes/wallDist/advectionDiffusionCoeffs
                epsilon   0.1;
                iters     1000;
                tolerance 1e-6;
            }
        }
    }

Example of the entries in fvSchemes:

    divSchemes
    {
        .
        .
        // avoid bounded schemes since yPhi is not conservative
        div(-yPhi,da) Gauss linearUpwind grad(da);
        .
        .
    }
    laplacianSchemes
    {
        .
        .
        laplacian(yWall,da) Gauss linear corrected;
        .
        .
    }

Also, the solver specification and a relaxation factor for da are required in fvSolution

    da
    {
        solver          PBiCGStab;
        preconditioner  DILU;
        tolerance       1e-9;
        relTol          0.1;
    }

    relaxationFactors
    {
        equations
        {
            .
            .
            da           0.5;
            .
            .
        }
    }

See also: Foam::patchDistMethod::advectionDiffusion Foam::wallDist

Source files

Definition at line 142 of file adjointEikonalSolverIncompressible.H.

Constructor & Destructor Documentation

◆ adjointEikonalSolver()

adjointEikonalSolver	(	const fvMesh &	mesh,
		const dictionary &	dict,
		const autoPtr< incompressible::RASModelVariables > &	RASModelVars,
		incompressibleAdjointVars &	adjointVars,
		const labelHashSet &	sensitivityPatchIDs
	)

Construct from components.

Definition at line 111 of file adjointEikonalSolverIncompressible.C.

References Foam::read().

Here is the call graph for this function:

◆ ~adjointEikonalSolver()

virtual ~adjointEikonalSolver ( )

virtualdefault

Member Function Documentation

◆ patchTypes()

wordList patchTypes ( ) const

protected

Return the boundary condition types for da.

Definition at line 41 of file adjointEikonalSolverIncompressible.C.

References fvMesh::boundary(), adjointEikonalSolver::mesh_, UPtrList< T >::size(), and adjointEikonalSolver::wallPatchIDs_.

Here is the call graph for this function:

◆ computeYPhi()

tmp< surfaceScalarField > computeYPhi ( )

protected

Compute convecting velocity.

Definition at line 71 of file adjointEikonalSolverIncompressible.C.

References fvMesh::boundary(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), adjointEikonalSolver::d(), Foam::dimless, Foam::fvc::grad(), Foam::fvc::interpolate(), adjointEikonalSolver::mesh_, tmp< T >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, patches, adjointEikonalSolver::RASModelVars_, fvMesh::Sf(), fvMesh::time(), Time::timeName(), adjointEikonalSolver::wallPatchIDs_, and Foam::Zero.

Referenced by adjointEikonalSolver::solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

void read ( )

protected

Read options each time a new solution is found.

Definition at line 58 of file adjointEikonalSolverIncompressible.C.

References adjointEikonalSolver::dict_, Foam::constant::electromagnetic::e, adjointEikonalSolver::epsilon_, dictionary::getOrDefault(), adjointEikonalSolver::mesh_, adjointEikonalSolver::nEikonalIters_, schemesLookup::schemesDict(), dictionary::subDict(), and adjointEikonalSolver::tolerance_.

Referenced by adjointEikonalSolver::solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "adjointEikonalSolver" )

Runtime type information.

◆ readDict()

bool readDict ( const dictionary & dict )

virtual

Read dict if changed.

Definition at line 168 of file adjointEikonalSolverIncompressible.C.

References dict, and adjointEikonalSolver::dict_.

◆ accumulateIntegrand()

void accumulateIntegrand ( const scalar dt )

Accumulate source term.

Definition at line 176 of file adjointEikonalSolverIncompressible.C.

References adjointEikonalSolver::adjointTurbulence_, adjointRASModel::distanceSensitivities(), and adjointEikonalSolver::source_.

Here is the call graph for this function:

◆ solve()

void solve ( )

Calculate the adjoint distance field.

Definition at line 183 of file adjointEikonalSolverIncompressible.C.

Here is the call graph for this function:

◆ reset()

void reset ( )

Reset source term.

Definition at line 230 of file adjointEikonalSolverIncompressible.C.

References DimensionedField< Type, GeoMesh >::dimensions(), adjointEikonalSolver::distanceSensPtr_, adjointEikonalSolver::source_, and Foam::Zero.

Here is the call graph for this function:

◆ distanceSensitivities()

boundaryVectorField & distanceSensitivities ( )

Return the sensitivity term depending on da.

Definition at line 237 of file adjointEikonalSolverIncompressible.C.

References fvMesh::boundary(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), adjointEikonalSolver::d(), adjointEikonalSolver::da_, adjointEikonalSolver::distanceSensPtr_, Foam::endl(), Foam::Info, adjointEikonalSolver::mesh_, adjointEikonalSolver::RASModelVars_, and adjointEikonalSolver::sensitivityPatchIDs_.

Here is the call graph for this function:

◆ getFISensitivityTerm()

tmp< volTensorField > getFISensitivityTerm ( ) const

Return the volume-based sensitivity term depending on da.

Definition at line 258 of file adjointEikonalSolverIncompressible.C.

References IOobjectOption::AUTO_WRITE, adjointEikonalSolver::d(), adjointEikonalSolver::da_, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimLength, Foam::endl(), adjointEikonalSolver::epsilon_, Foam::fvc::grad(), Foam::Info, adjointEikonalSolver::mesh_, IOobjectOption::NO_READ, adjointEikonalSolver::RASModelVars_, GeometricField< Type, PatchField, GeoMesh >::ref(), fvMesh::time(), Time::timeName(), adjointEikonalSolver::wallPatchIDs_, and Foam::Zero.

Here is the call graph for this function:

◆ da()

const volScalarField & da ( )

Return the adjoint distance field.

Definition at line 308 of file adjointEikonalSolverIncompressible.C.

References adjointEikonalSolver::da_.

◆ d()

const volScalarField& d ( )

Return the distance field.

Referenced by adjointEikonalSolver::computeYPhi(), adjointEikonalSolver::distanceSensitivities(), adjointEikonalSolver::getFISensitivityTerm(), adjointEikonalSolver::gradEikonal(), and adjointEikonalSolver::solve().

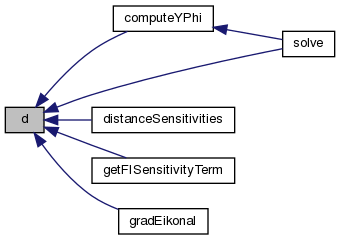

Here is the caller graph for this function:

◆ gradEikonal()

tmp< volVectorField > gradEikonal ( )

Return the gradient of the eikonal equation.

Definition at line 314 of file adjointEikonalSolverIncompressible.C.

References adjointEikonalSolver::d(), Foam::fvc::grad(), tmp< T >::New(), and adjointEikonalSolver::RASModelVars_.

Here is the call graph for this function:

Member Data Documentation

◆ mesh_

const fvMesh& mesh_

protected

Definition at line 163 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::computeYPhi(), adjointEikonalSolver::distanceSensitivities(), adjointEikonalSolver::getFISensitivityTerm(), adjointEikonalSolver::patchTypes(), adjointEikonalSolver::read(), and adjointEikonalSolver::solve().

◆ dict_

dictionary dict_

protected

Definition at line 165 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::read(), and adjointEikonalSolver::readDict().

◆ RASModelVars_

const autoPtr<incompressible::RASModelVariables>& RASModelVars_

protected

Definition at line 167 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::computeYPhi(), adjointEikonalSolver::distanceSensitivities(), adjointEikonalSolver::getFISensitivityTerm(), adjointEikonalSolver::gradEikonal(), and adjointEikonalSolver::solve().

◆ adjointTurbulence_

autoPtr<Foam::incompressibleAdjoint::adjointRASModel>& adjointTurbulence_

protected

Definition at line 170 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::accumulateIntegrand().

◆ sensitivityPatchIDs_

const labelHashSet& sensitivityPatchIDs_

protected

Definition at line 172 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::distanceSensitivities().

◆ nEikonalIters_

label nEikonalIters_

protected

Definition at line 174 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::read(), and adjointEikonalSolver::solve().

◆ tolerance_

scalar tolerance_

protected

Definition at line 176 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::read(), and adjointEikonalSolver::solve().

◆ epsilon_

scalar epsilon_

protected

Definition at line 178 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::getFISensitivityTerm(), adjointEikonalSolver::read(), and adjointEikonalSolver::solve().

◆ wallPatchIDs_

labelHashSet wallPatchIDs_

protected

Definition at line 180 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::computeYPhi(), adjointEikonalSolver::getFISensitivityTerm(), and adjointEikonalSolver::patchTypes().

◆ da_

volScalarField da_

protected

Definition at line 182 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::da(), adjointEikonalSolver::distanceSensitivities(), adjointEikonalSolver::getFISensitivityTerm(), and adjointEikonalSolver::solve().

◆ source_

volScalarField source_

protected

Definition at line 184 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::accumulateIntegrand(), adjointEikonalSolver::reset(), and adjointEikonalSolver::solve().

◆ distanceSensPtr_

autoPtr<boundaryVectorField> distanceSensPtr_

protected

Wall face sens w.r.t. (x,y.z)

Definition at line 189 of file adjointEikonalSolverIncompressible.H.

Referenced by adjointEikonalSolver::distanceSensitivities(), and adjointEikonalSolver::reset().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/adjointEikonalSolver/adjointEikonalSolverIncompressible.H
src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/adjointEikonalSolver/adjointEikonalSolverIncompressible.C
