Applies an explicit pressure gradient source in such a way to deflect the flow towards an specific direction (flowDir). Alternatively add an extra pressure drop in the flowDir direction using a model. More...

Inheritance diagram for directionalPressureGradientExplicitSource:

[legend]

Collaboration diagram for directionalPressureGradientExplicitSource:

[legend]

Public Types
enum	pressureDropModel { pVolumetricFlowRateTable, pConstant, pDarcyForchheimer }
	Modes of pressure drop. More...

Public Types inherited from cellSetOption
enum	selectionModeType { smAll, smCellSet, smCellZone, smPoints, smGeometric, smCellType }
	Enumeration for selection mode types. More...

Public Member Functions
	TypeName ("directionalPressureGradientExplicitSource")
	Runtime type information. More...

	directionalPressureGradientExplicitSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from explicit source name and mesh. More...

	directionalPressureGradientExplicitSource (const directionalPressureGradientExplicitSource &)=delete
	No copy construct. More...

void	operator= (const directionalPressureGradientExplicitSource &)=delete
	No copy assignment. More...

virtual	~directionalPressureGradientExplicitSource ()=default
	Destructor. More...

virtual void	correct (volVectorField &U)
	Correct the pressure gradient. More...

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldI)
	Add explicit contribution to momentum equation. More...

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)
	Add explicit contribution to compressible momentum equation. More...

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldI)
	Set 1/A coefficient. More...

virtual void	writeData (Ostream &os) const
	Write the source properties. More...

virtual bool	read (const dictionary &dict)
	Read source dictionary. More...

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")
	Runtime type information. More...

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components. More...

virtual	~cellSetOption ()=default
	Destructor. More...

scalar	timeStart () const noexcept
	Return const access to the time start. More...

scalar	duration () const noexcept
	Return const access to the duration. More...

bool	inTimeLimits (const scalar timeValue) const
	True if within time limits. More...

bool	useSubMesh () const noexcept
	True if sub-selection should be used. More...

selectionModeType	selectionMode () const noexcept
	Return the cell selection mode. More...

const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set or zone selection) More...

const wordRe &	zoneName () const
	Return const access to the first set/zone name. More...

scalar	V () const noexcept
	Return const access to the total cell volume. More...

const labelList &	cells () const noexcept
	Return const access to the cell selection. More...

scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value. More...

scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value. More...

virtual bool	isActive ()
	Is the source active? More...

const word &	cellSetName () const
	The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes) More...

Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components. More...

autoPtr< option >	clone () const
	Return clone. More...

virtual	~option ()=default
	Destructor. More...

const word &	name () const noexcept
	Return const access to the source name. More...

const fvMesh &	mesh () const noexcept
	Return const access to the mesh database. More...

const dictionary &	coeffs () const noexcept
	Return dictionary. More...

bool	active () const noexcept
	True if source is active. More...

void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi. More...

bool	active (const bool on) noexcept
	Change source active flag, return previous value. More...

virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list. More...

virtual void	checkApplied () const
	Check that the source has been applied. More...

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const
	Write the source header information. More...

virtual void	writeFooter (Ostream &) const
	Write the source footer information. More...

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model. More...

Public Attributes inherited from option
bool	log
	Switch write log to Info. More...

Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names. More...

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)
	Set cell selection name or points selection from dictionary input. More...

void	setCellSelection ()
	Set the cell selection based on user input selection mode. More...

void	setVol ()
	Recalculate the volume. More...

Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries. More...

Protected Attributes inherited from cellSetOption
scalar	timeStart_
	Start time of fvOption. More...

scalar	duration_
	Duration of fvOption execution starting from timeStart. More...

selectionModeType	selectionMode_
	Cell selection mode. More...

wordRes	selectionNames_
	Face selection names (for set or zone selections) More...

List< point >	points_
	List of points for "points" selectionMode. More...

dictionary	geometricSelection_
	Dictionary entries for "geometric" (topoSetCellSource) selection. More...

labelList	cells_
	Set of cells to apply source to. More...

scalar	V_
	Sum of cell volumes. More...

Protected Attributes inherited from option
const word	name_
	Source name. More...

const word	modelType_
	Model type. More...

const fvMesh &	mesh_
	Reference to the mesh database. More...

dictionary	dict_
	Top level source dictionary. More...

dictionary	coeffs_
	Dictionary containing source coefficients. More...

wordList	fieldNames_
	Field names to apply source to - populated by derived models. More...

List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry. More...

bool	active_
	Source active flag. More...

Detailed Description

Applies an explicit pressure gradient source in such a way to deflect the flow towards an specific direction (flowDir). Alternatively add an extra pressure drop in the flowDir direction using a model.

Usage

Minimal example by using constant/fvOptions:

directionalPressureGradientExplicitSource1
{
    // Mandatory entries (unmodifiable)
    type            directionalPressureGradientExplicitSource;

    // Mandatory entries (unmodifiable)
    model       <modelName>;
    fields      (<fieldName>);

    // Mandatory entries (runtime modifiable)
    flowDir     (1 1 0);
    faceZone    <faceZoneName>;

    // Conditional mandatory entries (unmodifiable)

        // when <timePath>/uniform/<name>Properties file exists
        gradient    <vectorField>; // reading from the aforementioned file

        // when model=DarcyForchheimer
        // deltaP = (D*mu + 0.5*rho*magUn)*magUn*length
        D           5e7;
        I           0;
        length      1e-3;

        // when model=constant
        pressureDrop    40;

        // when model=volumetricFlowRateTable
        outOfBounds     clamp;
        fileName        "volFlowRateTable";

    // Optional entries (runtime modifiable)
    relaxationFactor    0.3;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: directionalPressureGradientExplicitSource	word	yes	-
`model`	Pressure drop model [Pa]	word	yes	-
`fields`	Name of operand field	word	yes	-
`gradient`	Initial pressure gradient field	vectorField	cndtnl	-
`flowDir`	Deflection flow direction	vector	yes	-
`faceZone`	Name of upstream faceZone	word	yes	-
`relaxationFactor`	Relaxation factor for flow deflection	scalar	no	0.3
`D`	Darcy pressure loss coefficient	scalar	cndtnl	-
`I`	Inertia pressure lost coefficient	scalar	cndtnl	-
`length`	Porous media length	scalar	cndtnl	-
`presssureDrop`	Constant pressure drop	scalar	cndtnl	-
`fileName`	Interpolation table for volumetric flow rate	interpolationTable	cndtnl	-

Options for the model entry:

      volumetricFlowRateTable | Pressure-gradient file
      constant                | Constant pressure drop
      DarcyForchheimer        | Darcy-Forchheimer model

The inherited entries are elaborated in:

Note

In order to obtain the upwind velocities this function loops over the slaves cells of the faceZone specified in the dictionary, on the other hand, the cellZone to which this source term is applied should be composed of the master cells and they should be 'downwind' the faceZone.

Source files

Definition at line 218 of file directionalPressureGradientExplicitSource.H.

Member Enumeration Documentation

◆ pressureDropModel

enum pressureDropModel

Modes of pressure drop.

Enumerator
pVolumetricFlowRateTable
pConstant
pDarcyForchheimer

Definition at line 229 of file directionalPressureGradientExplicitSource.H.

Constructor & Destructor Documentation

◆ directionalPressureGradientExplicitSource() [1/2]

directionalPressureGradientExplicitSource	(	const word &	sourceName,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Construct from explicit source name and mesh.

Definition at line 157 of file directionalPressureGradientExplicitSource.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), Foam::Info, Foam::name(), Foam::nl, propsDict(), option::resetApplied(), and Foam::type().

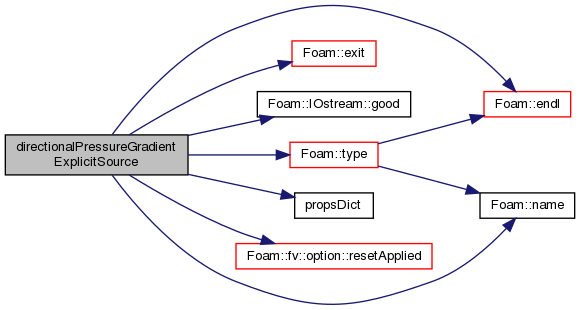

Here is the call graph for this function:

◆ directionalPressureGradientExplicitSource() [2/2]

directionalPressureGradientExplicitSource ( const directionalPressureGradientExplicitSource & )

delete

No copy construct.

◆ ~directionalPressureGradientExplicitSource()

virtual ~directionalPressureGradientExplicitSource ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "directionalPressureGradientExplicitSource" )

Runtime type information.

◆ operator=()

void operator= ( const directionalPressureGradientExplicitSource & )

delete

No copy assignment.

◆ correct()

void correct ( volVectorField & U )

virtual

Correct the pressure gradient.

Reimplemented from option.

Definition at line 250 of file directionalPressureGradientExplicitSource.C.

References cellId, fvPatchField< Type >::coupled(), D, Foam::ensightOutput::debug, Foam::dimArea, Foam::dimVelocity, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, faceZone::flipMap(), forAll, Foam::gSum(), Foam::gSumProd(), Foam::Info, Foam::mag(), faceZone::masterCells(), mesh, Foam::constant::physicoChemical::mu, nu, fvPatchField< Type >::patchNeighbourField(), phi, turbulenceModel::propertiesName, rAU, Foam::reduce(), rho, Foam::rotationTensor(), UList< T >::size(), faceZone::slaveCells(), U, and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Add explicit contribution to momentum equation.

Reimplemented from option.

Definition at line 454 of file directionalPressureGradientExplicitSource.C.

References fvMatrix< Type >::dimensions(), Foam::dimVolume, IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, Su, and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Add explicit contribution to compressible momentum equation.

Reimplemented from option.

Definition at line 480 of file directionalPressureGradientExplicitSource.C.

◆ constrain()

void constrain	(	fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Set 1/A coefficient.

Reimplemented from option.

Definition at line 491 of file directionalPressureGradientExplicitSource.C.

References fvMatrix< Type >::A(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, and Foam::Zero.

Here is the call graph for this function:

◆ writeData()

void writeData ( Ostream & os ) const

virtual

Write the source properties.

Reimplemented from option.

Definition at line 525 of file directionalPressureGradientExplicitSource.C.

References NotImplemented.

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from cellSetOption.

Definition at line 534 of file directionalPressureGradientExplicitSource.C.

References dict, and dictionary::getOrDefault().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/directionalPressureGradientExplicitSource/directionalPressureGradientExplicitSource.H
src/fvOptions/sources/derived/directionalPressureGradientExplicitSource/directionalPressureGradientExplicitSource.C

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ pressureDropModel

Constructor & Destructor Documentation

◆ directionalPressureGradientExplicitSource() [1/2]

◆ directionalPressureGradientExplicitSource() [2/2]

◆ ~directionalPressureGradientExplicitSource()

Member Function Documentation

◆ TypeName()

◆ operator=()

◆ correct()

◆ addSup() [1/2]

◆ addSup() [2/2]

◆ constrain()

◆ writeData()

◆ read()
