Read PROSTAR vrt/cel/bnd files. The protected data in meshReader are filled. More...

Inheritance diagram for STARCDMeshReader:

Collaboration diagram for STARCDMeshReader:

[legend]

Public Member Functions
	STARCDMeshReader (const fileName &prefix, const objectRegistry &registry, const scalar scaleFactor=1.0, const bool keepSolids=false)
	Construct from case name. More...

virtual	~STARCDMeshReader ()=default
	Destructor. More...

Public Member Functions inherited from meshReader
	meshReader (const fileName &, const scalar scaling=1.0)
	Construct from fileName. More...

virtual	~meshReader ()=default
	Destructor. More...

virtual autoPtr< polyMesh >	mesh (const objectRegistry &)
	Create and return polyMesh. More...

void	writeAux (const objectRegistry &) const
	Write auxiliary information. More...

void	writeMesh (const polyMesh &, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const
	Write mesh. More...

Protected Member Functions
virtual bool	readGeometry (const scalar scaleFactor=1.0)
	Read the mesh from the file(s) More...

label	readPoints (const fileName &, const scalar scaleFactor)
	Read points from file, return the max prostar id used. More...

virtual void	readCells (const fileName &)
	Read cell connectivities from file. More...

void	cullPoints ()
	Remove unused points. More...

void	readBoundary (const fileName &)
	Read boundary (cell/face) definitions. More...

void	readAux (const objectRegistry &)
	Read auxiliary data from constant/{boundaryRegion,cellTable}. More...

Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default
	Construct null. More...

Protected Attributes
cellShapeList	cellShapes_
	Cell shapes. More...

labelList	mapToFoamPointId_
	Point labels (imported Point numbering not necessarily contiguous) More...

labelList	mapToFoamCellId_
	Cell labels (imported Cell numbering not necessarily contiguous) More...

boundaryRegion	boundaryRegion_
	Boundary region data. More...

Protected Attributes inherited from meshReader
fileName	geometryFile_
	Referenced filename. More...

scalar	scaleFactor_
	Geometry scaling. More...

pointField	points_
	Points supporting the mesh. More...

labelList	origCellId_
	Lookup original Cell number for a given cell. More...

List< List< cellFaceIdentifier > >	boundaryIds_
	Identify boundary faces by cells and their faces. More...

wordList	patchTypes_
	Boundary patch types. More...

wordList	patchNames_
	Boundary patch names. More...

wordList	patchPhysicalTypes_
	Boundary patch physical types. More...

labelList	patchStarts_
	Polyhedral mesh boundary patch start indices and dimensions. More...

labelList	patchSizes_

label	nInternalFaces_
	Number of internal faces for polyMesh. More...

faceList	meshFaces_
	Global face list for polyMesh. More...

faceListList	cellFaces_
	List of faces for every cell. More...

faceList	baffleFaces_
	List of each baffle face. More...

labelList	cellTableId_
	Cell table id for each cell. More...

cellTable	cellTable_
	Cell table persistent data saved as a dictionary. More...

Additional Inherited Members
Static Public Member Functions inherited from meshReader
static void	warnDuplicates (const word &context, const wordList &)
	Warn about repeated names. More...

Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL, HEADER_VRT, HEADER_BND }
	Enumeration defining the file headers. More...

enum	fileExt { CEL_FILE, VRT_FILE, BND_FILE, INP_FILE }
	Enumeration defining the file extensions. More...

enum	matlType { starcdFluidType = 1, starcdSolidType = 2, starcdBaffleType = 3, starcdShellType = 4, starcdLineType = 5, starcdPointType = 6 }
	Basic material type for STARCD/PROSTAR files. More...

enum	shapeType { starcdPoint = 1, starcdLine = 2, starcdShell = 3, starcdHex = 11, starcdPrism = 12, starcdTet = 13, starcdPyr = 14, starcdPoly = 255 }
	Shape-Type for STARCD/PROSTAR files. More...

Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)
	Read header and check signature PROSTAR_(CELL\|VERTEX\|BOUNDARY) More...

static void	writeHeader (Ostream &os, const enum fileHeader header)
	Write header for fileType (CELL\|VERTEX\|BOUNDARY) More...

static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
	Resolve base file-name for the given file-type. More...

static void	removeFiles (const fileName &baseName)
	Remove existing PROSTAR files for the given base file-name. More...

static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
	Read points from a (.vrt) file, return the max prostar id used. More...

static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
	Write header and points to (.vrt) file, optionally with scaling. More...

Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
	Face addressing from PROSTAR faces to OpenFOAM faces. More...

static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
	Face addressing from OpenFOAM faces to PROSTAR faces. More...

static const char *const	defaultBoundaryName
	The name for default (unassigned) boundaries. More...

static const char *const	defaultSolidBoundaryName
	The name we have chosen for default (unassigned) solid boundaries. More...

Detailed Description

Read PROSTAR vrt/cel/bnd files. The protected data in meshReader are filled.

Starting with PROSTAR version 4, the files have become easier to read.

vertices are space-delimited.
the cell format is logical.
trimmed and degenerate cells are saved as polyhedral.
the boundaries corresponds to cells and their faces.

Notes

Shell entries are read, yet ignored.

Source files

Definition at line 64 of file STARCDMeshReader.H.

Constructor & Destructor Documentation

◆ STARCDMeshReader()

STARCDMeshReader	(	const fileName &	prefix,
		const objectRegistry &	registry,
		const scalar	scaleFactor = `1.0`,
		const bool	keepSolids = `false`
	)

Construct from case name.

Definition at line 1032 of file STARCDMeshReader.C.

◆ ~STARCDMeshReader()

virtual ~STARCDMeshReader ( )

virtualdefault

Destructor.

Member Function Documentation

◆ readGeometry()

bool readGeometry ( const scalar scaleFactor = 1.0 )

protectedvirtual

Read the mesh from the file(s)

Implements meshReader.

Definition at line 1008 of file STARCDMeshReader.C.

References STARCDCore::BND_FILE, STARCDCore::CEL_FILE, and STARCDCore::VRT_FILE.

◆ readPoints()

Foam::label readPoints	(	const fileName &	inputName,
		const scalar	scaleFactor
	)

protected

Read points from file, return the max prostar id used.

Original Point number for a given vertex

might need again in the future // labelList origPointId(nPoints); // origPointId = -1;

Definition at line 78 of file STARCDMeshReader.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), Foam::Info, token::isLabel(), token::labelToken(), Foam::max(), Foam::nl, nPoints, ISstream::read(), x, and y.

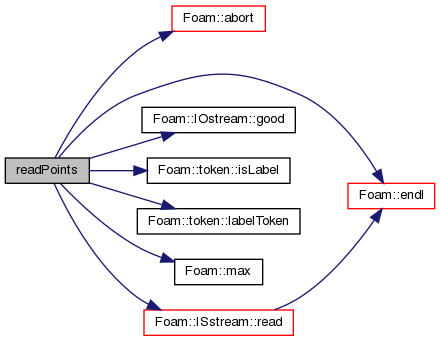

Here is the call graph for this function:

◆ readCells()

void readCells ( const fileName & inputName )

protectedvirtual

Read cell connectivities from file.

Definition at line 213 of file STARCDMeshReader.C.

Here is the call graph for this function:

◆ cullPoints()

void cullPoints ( )

protected

Remove unused points.

Definition at line 949 of file STARCDMeshReader.C.

References Foam::endl(), f(), forAll, Foam::Info, Foam::inplaceRenumber(), Foam::inplaceReorder(), and nPoints.

Here is the call graph for this function:

◆ readBoundary()

void readBoundary ( const fileName & inputName )

protected

Read boundary (cell/face) definitions.

Definition at line 604 of file STARCDMeshReader.C.

References cellId, dict, Foam::endl(), forAll, HashTable< T, Key, Hash >::found(), IOstream::good(), STARCDCore::HEADER_BND, cellModel::HEX, Foam::identity(), cellModel::index(), Foam::Info, Foam::stringOps::inplaceLower(), Foam::inplaceReorder(), token::isLabel(), Foam::max(), Foam::name(), nPatches, cellModel::PRISM, cellModel::PYR, ISstream::read(), cellModel::ref(), List< T >::setSize(), UList< T >::size(), Foam::sortedOrder(), STARCDCore::starcdHex, STARCDCore::starcdPrism, STARCDCore::starcdPyr, STARCDCore::starcdTet, STARCDCore::starToFoamFaceAddr, cellModel::TET, and Foam::Zero.

Here is the call graph for this function:

◆ readAux()

void readAux ( const objectRegistry & registry )

protected

Read auxiliary data from constant/{boundaryRegion,cellTable}.

Definition at line 55 of file STARCDMeshReader.C.

Member Data Documentation

◆ cellShapes_

cellShapeList cellShapes_

protected

Cell shapes.

Definition at line 84 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

◆ mapToFoamPointId_

labelList mapToFoamPointId_

protected

Point labels (imported Point numbering not necessarily contiguous)

Definition at line 89 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

◆ mapToFoamCellId_

labelList mapToFoamCellId_

protected

Cell labels (imported Cell numbering not necessarily contiguous)

Definition at line 94 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

◆ boundaryRegion_

boundaryRegion boundaryRegion_

protected

Boundary region data.

Definition at line 99 of file STARCDMeshReader.H.

The documentation for this class was generated from the following files:

src/conversion/starcd/STARCDMeshReader.H
src/conversion/starcd/STARCDMeshReader.C
