Ensight format surface reader. More...

Inheritance diagram for ensightSurfaceReader:

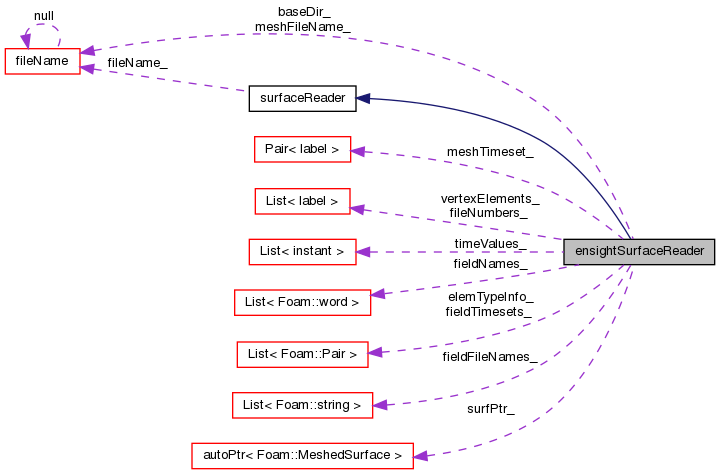

Collaboration diagram for ensightSurfaceReader:

[legend]

Public Member Functions
	ensightSurfaceReader (const ensightSurfaceReader &)=delete
	No copy construct. More...

void	operator= (const ensightSurfaceReader &)=delete
	No copy assignment. More...

	TypeName ("ensight")
	Runtime type information. More...

	ensightSurfaceReader (const fileName &fName, const dictionary &options=dictionary())
	Construct from fileName, with reader options. More...

virtual	~ensightSurfaceReader ()=default
	Destructor. More...

virtual const meshedSurface &	geometry (const label timeIndex)
	Return a reference to the surface geometry. More...

virtual label	nVertexElements () const
	The number of 1D vertex/point elements for the last geometry read. Non-zero when the surface reader is used/misused to read vertex/point elements instead of faces (advanced option) More...

virtual instantList	times () const
	Return a list of the available times. More...

virtual wordList	fieldNames (const label timeIndex) const
	Return a list of the available fields at a given time. More...

virtual tmp< Field< scalar > >	field (const label timeIndex, const label fieldIndex, const scalar &refValue=pTraits< scalar >::zero) const
	Return a scalar field at a given time. More...

virtual tmp< Field< vector > >	field (const label timeIndex, const label fieldIndex, const vector &refValue=pTraits< vector >::zero) const
	Return a vector field at a given time. More...

virtual tmp< Field< sphericalTensor > >	field (const label timeIndex, const label fieldIndex, const sphericalTensor &refValue=pTraits< sphericalTensor >::zero) const
	Return a sphericalTensor field at a given time. More...

virtual tmp< Field< symmTensor > >	field (const label timeIndex, const label fieldIndex, const symmTensor &refValue=pTraits< symmTensor >::zero) const
	Return a symmTensor field at a given time. More...

virtual tmp< Field< tensor > >	field (const label timeIndex, const label fieldIndex, const tensor &refValue=pTraits< tensor >::zero) const
	Return a tensor field at a given time. More...

Public Member Functions inherited from surfaceReader
	TypeName ("surfaceReader")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, surfaceReader, fileName,(const fileName &fName, const dictionary &options),(fName, options))

	surfaceReader (const fileName &fName)
	Construct from fileName. More...

	surfaceReader (const fileName &fName, const dictionary &options)
	Construct from fileName and specified options. More...

virtual	~surfaceReader ()=default
	Destructor. More...

Protected Types
enum	idTypes : unsigned char { NONE = 0, IGNORE = 1, GIVEN = 2 }
	Handling of node/element id types (off, assign, ignore, given) More...

Protected Member Functions
Pair< idTypes >	readGeometryHeader (ensightReadFile &is) const
	Read (and discard) geometry file header. More...

void	readCase (ISstream &is)
	Read the case file. More...

meshedSurface	readGeometry (const fileName &geometryFile, const label timeIndex=0)
	Read and return surface geometry. More...

template<class Type >
tmp< Field< Type > >	readField (const fileName &dataFile, const word &fieldName, const label timeIndex=0) const
	Helper function to return a field. More...

template<class Type >
tmp< Field< Type > >	readField (const label timeIndex, const label fieldIndex) const
	Helper function to return a field. More...

Static Protected Member Functions
static bool	readLine (ISstream &is, std::string &line)
	Helper function to read an ascii line from file, skipping blank lines and comments. More...

static void	checkSection (const word &expected, const string &buffer, const ISstream &is)
	Check a section header. More...

static void	debugSection (const word &expected, ISstream &is)
	Read and check a section header. More...

Protected Attributes
bool	masterOnly_
	Read on master and broadcast (in parallel) More...

bool	vertexOnly_
	Retain 1D vertex/point elements, no faces. More...

IOstreamOption::streamFormat	readFormat_
	Format flag. More...

fileName	baseDir_
	Base directory. More...

labelPair	meshTimeset_
	The timeset/fileset (if any) associated with the mesh. More...

fileName	meshFileName_
	Name of mesh file, including any subdirectory. More...

List< labelPair >	fieldTimesets_
	The timeset/fileset (if any) associated with fields. More...

List< word >	fieldNames_
	Field names. More...

List< string >	fieldFileNames_
	Field file names. More...

label	timeStartIndex_
	Start time index. More...

label	timeIncrement_
	Time increment. More...

labelList	fileNumbers_
	Numbers for files. More...

instantList	timeValues_
	Times. More...

autoPtr< meshedSurface >	surfPtr_
	Pointer to the surface. More...

labelList	vertexElements_
	Has these 1D vertex/point elements. More...

List< labelPair >	elemTypeInfo_
	List of (element-type, count) tuples. More...

Protected Attributes inherited from surfaceReader
fileName	fileName_
	File name. More...

Additional Inherited Members
Static Public Member Functions inherited from surfaceReader
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions. More...

static autoPtr< surfaceReader >	New (const word &readType, const fileName &fName, const dictionary &options=dictionary())
	Return a reference to the selected surfaceReader. More...

Detailed Description

Ensight format surface reader.

readOptions
{
    ensight
    {
        debug       false;
        masterOnly  true;
        vertexOnly  false;
    }
}

Format options for ensight:

Property	Description	Required	Default
`debug`	Add debug flag	no	false
`masterOnly`	Read files on master and broadcast values	no	true
`vertexOnly`	Retain 1D vertex/point elements, no faces	no	false

Source files

Definition at line 92 of file ensightSurfaceReader.H.

Member Enumeration Documentation

◆ idTypes

enum idTypes : unsigned char

protected

Handling of node/element id types (off, assign, ignore, given)

Enumerator
NONE	"off", "assign"
IGNORE	Read but "ignore".
GIVEN	Use "given" values (not supported)

Definition at line 103 of file ensightSurfaceReader.H.

Constructor & Destructor Documentation

◆ ensightSurfaceReader() [1/2]

ensightSurfaceReader ( const ensightSurfaceReader & )

delete

No copy construct.

◆ ensightSurfaceReader() [2/2]

ensightSurfaceReader	(	const fileName &	fName,
		const dictionary &	options = `dictionary()`
	)

explicit

Construct from fileName, with reader options.

◆ ~ensightSurfaceReader()

virtual ~ensightSurfaceReader ( )

virtualdefault

Destructor.

Member Function Documentation

◆ readLine()

static bool readLine	(	ISstream &	is,
		std::string &	line
	)

staticprotected

Helper function to read an ascii line from file, skipping blank lines and comments.

Returns: True if reading was successful

◆ checkSection()

static void checkSection	(	const word &	expected,
		const string &	buffer,
		const ISstream &	is
	)

staticprotected

Check a section header.

◆ debugSection()

static void debugSection	(	const word &	expected,
		ISstream &	is
	)

staticprotected

Read and check a section header.

◆ readGeometryHeader()

Pair<idTypes> readGeometryHeader ( ensightReadFile & is ) const

protected

Read (and discard) geometry file header.

Returns: information about node/element id handling

◆ readCase()

void readCase ( ISstream & is )

protected

Read the case file.

◆ readGeometry()

meshedSurface readGeometry	(	const fileName &	geometryFile,
		const label	timeIndex = `0`
	)

protected

Read and return surface geometry.

Updates elemTypeInfo_ and vertexElements_

Parameters

timeIndex Optional index for transient single-file format

◆ readField() [1/2]

tmp<Field<Type> > readField	(	const fileName &	dataFile,
		const word &	fieldName,
		const label	timeIndex = `0`
	)		const

protected

Helper function to return a field.

◆ readField() [2/2]

tmp<Field<Type> > readField	(	const label	timeIndex,
		const label	fieldIndex
	)		const

protected

Helper function to return a field.

◆ operator=()

void operator= ( const ensightSurfaceReader & )

delete

No copy assignment.

◆ TypeName()

TypeName ( "ensight" )

Runtime type information.

◆ geometry()

virtual const meshedSurface& geometry ( const label timeIndex )

virtual

Return a reference to the surface geometry.

Implements surfaceReader.

◆ nVertexElements()

virtual label nVertexElements ( ) const

virtual

The number of 1D vertex/point elements for the last geometry read. Non-zero when the surface reader is used/misused to read vertex/point elements instead of faces (advanced option)

Implements surfaceReader.

◆ times()

virtual instantList times ( ) const

virtual

Return a list of the available times.

Implements surfaceReader.

◆ fieldNames()

virtual wordList fieldNames ( const label timeIndex ) const

virtual

Return a list of the available fields at a given time.

Implements surfaceReader.

◆ field() [1/5]

virtual tmp<Field<scalar> > field	(	const label	timeIndex,
		const label	fieldIndex,
		const scalar &	refValue = `pTraits< scalar >::zero`
	)		const

virtual

Return a scalar field at a given time.

Implements surfaceReader.

◆ field() [2/5]

virtual tmp<Field<vector> > field	(	const label	timeIndex,
		const label	fieldIndex,
		const vector &	refValue = `pTraits< vector >::zero`
	)		const

virtual

Return a vector field at a given time.

Implements surfaceReader.

◆ field() [3/5]

virtual tmp<Field<sphericalTensor> > field	(	const label	timeIndex,
		const label	fieldIndex,
		const sphericalTensor &	refValue = `pTraits< sphericalTensor >::zero`
	)		const

virtual

Return a sphericalTensor field at a given time.

Implements surfaceReader.

◆ field() [4/5]

virtual tmp<Field<symmTensor> > field	(	const label	timeIndex,
		const label	fieldIndex,
		const symmTensor &	refValue = `pTraits< symmTensor >::zero`
	)		const

virtual

Return a symmTensor field at a given time.

Implements surfaceReader.

◆ field() [5/5]

virtual tmp<Field<tensor> > field	(	const label	timeIndex,
		const label	fieldIndex,
		const tensor &	refValue = `pTraits< tensor >::zero`
	)		const

virtual

Return a tensor field at a given time.

Implements surfaceReader.

Member Data Documentation

◆ masterOnly_

bool masterOnly_

protected

Read on master and broadcast (in parallel)

Definition at line 116 of file ensightSurfaceReader.H.

◆ vertexOnly_

bool vertexOnly_

protected

Retain 1D vertex/point elements, no faces.

Definition at line 121 of file ensightSurfaceReader.H.

◆ readFormat_

IOstreamOption::streamFormat readFormat_

protected

Format flag.

Definition at line 126 of file ensightSurfaceReader.H.

◆ baseDir_

fileName baseDir_

protected

Base directory.

Definition at line 131 of file ensightSurfaceReader.H.

◆ meshTimeset_

labelPair meshTimeset_

protected

The timeset/fileset (if any) associated with the mesh.

Definition at line 136 of file ensightSurfaceReader.H.

◆ meshFileName_

fileName meshFileName_

protected

Name of mesh file, including any subdirectory.

Definition at line 141 of file ensightSurfaceReader.H.

◆ fieldTimesets_

List<labelPair> fieldTimesets_

protected

The timeset/fileset (if any) associated with fields.

Definition at line 146 of file ensightSurfaceReader.H.

◆ fieldNames_

List<word> fieldNames_

protected

Field names.

Definition at line 151 of file ensightSurfaceReader.H.

◆ fieldFileNames_

List<string> fieldFileNames_

protected

Field file names.

Definition at line 156 of file ensightSurfaceReader.H.

◆ timeStartIndex_

label timeStartIndex_

protected

Start time index.

Definition at line 161 of file ensightSurfaceReader.H.

◆ timeIncrement_

label timeIncrement_

protected

Time increment.

Definition at line 166 of file ensightSurfaceReader.H.

◆ fileNumbers_

labelList fileNumbers_

protected

Numbers for files.

Definition at line 171 of file ensightSurfaceReader.H.

◆ timeValues_

instantList timeValues_

protected

Times.

Definition at line 176 of file ensightSurfaceReader.H.

◆ surfPtr_

autoPtr<meshedSurface> surfPtr_

protected

Pointer to the surface.

Definition at line 181 of file ensightSurfaceReader.H.

◆ vertexElements_

labelList vertexElements_

protected

Has these 1D vertex/point elements.

Definition at line 186 of file ensightSurfaceReader.H.

◆ elemTypeInfo_

List<labelPair> elemTypeInfo_

protected

List of (element-type, count) tuples.

Element-type is typically (tria3, quad4, nsided). A negative count means a discarded (ignored) element type.

Definition at line 194 of file ensightSurfaceReader.H.

The documentation for this class was generated from the following file:

src/surfMesh/readers/ensight/ensightSurfaceReader.H

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ idTypes

Constructor & Destructor Documentation

◆ ensightSurfaceReader() [1/2]

◆ ensightSurfaceReader() [2/2]

◆ ~ensightSurfaceReader()

Member Function Documentation

◆ readLine()

◆ checkSection()

◆ debugSection()

◆ readGeometryHeader()

◆ readCase()

◆ readGeometry()

◆ readField() [1/2]

◆ readField() [2/2]

◆ operator=()

◆ TypeName()

◆ geometry()

◆ nVertexElements()

◆ times()

◆ fieldNames()

◆ field() [1/5]

◆ field() [2/5]

◆ field() [3/5]

◆ field() [4/5]

◆ field() [5/5]

Member Data Documentation

◆ masterOnly_

◆ vertexOnly_

◆ readFormat_

◆ baseDir_

◆ meshTimeset_

◆ meshFileName_

◆ fieldTimesets_

◆ fieldNames_

◆ fieldFileNames_

◆ timeStartIndex_

◆ timeIncrement_

◆ fileNumbers_

◆ timeValues_

◆ surfPtr_

◆ vertexElements_

◆ elemTypeInfo_
