Write coordSet(s) as Abaqus point fields. More...

Inheritance diagram for abaqusWriter:

Collaboration diagram for abaqusWriter:

Public Types
enum	timeBase { time, iter }
	Enumeration for time base. More...

Public Member Functions
	TypeNameNoDebug ("abaqus")
	Runtime type information (no debug) More...

	abaqusWriter ()
	Default construct. More...

	abaqusWriter (const dictionary &options)
	Default construct with specified options. More...

	abaqusWriter (const coordSet &coords, const fileName &outputPath, const dictionary &options=dictionary())
	Construct from components. More...

	abaqusWriter (const UPtrList< coordSet > &tracks, const fileName &outputPath, const dictionary &options=dictionary())
	Construct from components. More...

virtual	~abaqusWriter ()
	Destructor. Calls close() More...

virtual fileName	path () const
	Characteristic output file name - information only. More...

	declareCoordSetWriterWriteMethod (label)

	declareCoordSetWriterWriteMethod (scalar)

	declareCoordSetWriterWriteMethod (vector)

	declareCoordSetWriterWriteMethod (sphericalTensor)

	declareCoordSetWriterWriteMethod (symmTensor)

	declareCoordSetWriterWriteMethod (tensor)

template<class Type >
Foam::fileName	writeTemplate (const word &fieldName, const Field< Type > &values)

template<class Type >

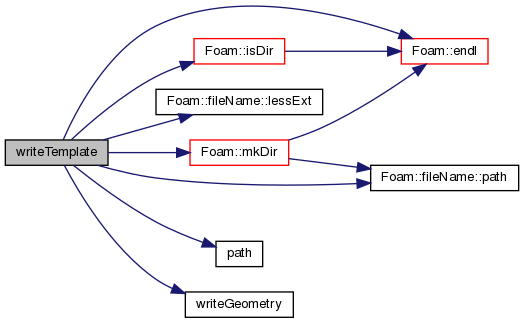

Foam::fileName	writeTemplate (const word &fieldName, const List< Field< Type >> &fieldValues)

Public Member Functions inherited from coordSetWriter
	TypeName ("coordSetWriter")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, coordSetWriter, word,(),())

	declareRunTimeSelectionTable (autoPtr, coordSetWriter, wordDict,(const dictionary &writeOptions),(writeOptions))

	coordSetWriter ()
	Default construct. More...

	coordSetWriter (const dictionary &options)
	Default construct with specified options. More...

virtual	~coordSetWriter ()
	Destructor. Calls close() More...

virtual bool	buffering () const
	True if the format uses internal buffering (eg, column output) More...

virtual bool	buffering (const bool on)
	Turn internal buffering on/off (only if supported by the writer) More...

virtual bool	enabled () const
	The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations. More...

virtual bool	needsUpdate () const
	Does the writer need an update (eg, lagging behind other changes) More...

virtual bool	wroteData () const
	Geometry or fields written since the last open? More...

virtual bool	expire ()
	Mark that content changed and the writer will need an update, and set nFields = 0. More...

virtual void	clear ()
	Close any open output, remove coordSet associations and expire the writer. More...

virtual void	setCoordinates (const coordSet *coords)
	Set coordinates, can also be nullptr. More...

virtual void	setCoordinates (const coordSet &coords)
	Set coordinates. More...

virtual void	setTracks (const UPtrList< coordSet > &tracks)
	Set track coordinates. More...

virtual void	setTrackTimes (const UList< scalarField > &times)
	Set track times. More...

label	numPoints () const
	The number of associated points (local processor) More...

label	numTracks () const
	The number of coordinate tracks. More...

bool	hasCoords () const
	Writer is associated with content. More...

bool	empty () const
	Writer is not associated with content. More...

bool	is_open () const noexcept
	Test if outputPath has been set. More...

label	nFields () const noexcept
	The number of expected output fields. More...

label	nFields (const label n) noexcept
	Set the number of expected output fields. More...

bool	useTracks () const noexcept
	Prefer tracks to points during single set writing. More...

bool	useTracks (const bool on) noexcept
	Enable/disable tracks preference. More...

bool	useTimeDir () const noexcept
	Should a time directory be spliced into the output path? More...

bool	useTimeDir (const bool on) noexcept
	Enable/disable use of spliced output path. More...

bool	verbose () const noexcept
	Get output verbosity. More...

bool	verbose (bool on) noexcept
	Enable/disable verbose output. More...

bool	hasTime () const
	True if there is a known time. More...

const word &	timeName () const
	The current time value/name. More...

scalar	timeValue () const
	The current time value/name. More...

void	setTime (const instant &inst)
	Set the current time. More...

void	setTime (scalar timeValue)
	Set current time from timeValue, auto generating the name. More...

void	setTime (scalar timeValue, const word &timeName)
	Set current time from timeValue and timeName. More...

void	unsetTime ()
	Clear the current time. More...

virtual void	beginTime (const Time &t)
	Begin a time-step. More...

virtual void	beginTime (const instant &inst)
	Begin a time-step. More...

virtual void	endTime ()
	End a time-step. More...

virtual void	open (const fileName &outputPath)
	Write separate geometry to file. More...

virtual void	open (const coordSet &coords, const fileName &outputPath)
	Open from components. More...

virtual void	open (const UPtrList< coordSet > &tracks, const fileName &outputPath)
	Open from components. More...

virtual void	close (bool force=false)
	Finish output, performing any necessary cleanup. More...

virtual InfoProxy< coordSetWriter >	info () const
	Return info proxy, used to print information to a stream. More...

virtual fileName	write (const word &fieldName, const Field< label > &field)=0
	Write field of label (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< label >> &fieldValues)=0
	Write track fields of label (point data) More...

virtual fileName	write (const word &fieldName, const Field< scalar > &field)=0
	Write field of scalar (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< scalar >> &fieldValues)=0
	Write track fields of scalar (point data) More...

virtual fileName	write (const word &fieldName, const Field< vector > &field)=0
	Write field of vector (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< vector >> &fieldValues)=0
	Write track fields of vector (point data) More...

virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &field)=0
	Write field of sphericalTensor (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< sphericalTensor >> &fieldValues)=0
	Write track fields of sphericalTensor (point data) More...

virtual fileName	write (const word &fieldName, const Field< symmTensor > &field)=0
	Write field of symmTensor (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< symmTensor >> &fieldValues)=0
	Write track fields of symmTensor (point data) More...

virtual fileName	write (const word &fieldName, const Field< tensor > &field)=0
	Write field of tensor (point data) More...

virtual fileName	write (const word &fieldName, const List< Field< tensor >> &fieldValues)=0
	Write track fields of tensor (point data) More...

template<class Type >
Foam::tmp< Foam::Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type >> &tfield) const

template<class Type >
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const Field< Type > &field)

template<class Type >
Foam::UPtrList< const Foam::Field< Type > >	repackageFields (const UList< Field< Type >> &fieldValues)

Additional Inherited Members
Static Public Member Functions inherited from coordSetWriter
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions. More...

static dictionary	formatOptions (const dictionary &dict, const dictionary &setDict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions. More...

static bool	supportedType (const word &writeType)
	True if New is likely to succeed for this writeType. More...

static autoPtr< coordSetWriter >	New (const word &writeFormat)
	Return a reference to the selected writer. More...

static autoPtr< coordSetWriter >	New (const word &writeFormat, const dictionary &writeOptions)
	Return a reference to the selected writer. More...

static word	suffix (const word &fldName, const word &fileExt=word::null)
	Name suffix based on fieldName (underscore separator) More...

static word	suffix (const wordList &fieldNames, const word &fileExt=word::null)
	Name suffix based on fieldNames (underscore separator) More...

Protected Member Functions inherited from coordSetWriter
void	appendField (const word &fieldName, const Field< label > &vals)

void	appendField (const word &fieldName, const Field< scalar > &vals)

void	appendField (const word &fieldName, const Field< vector > &vals)

void	appendField (const word &fieldName, const Field< sphericalTensor > &vals)

void	appendField (const word &fieldName, const Field< symmTensor > &vals)

void	appendField (const word &fieldName, const Field< tensor > &vals)

void	clearBuffers ()
	Clear out buffering. More...

label	nDataColumns () const
	The number of buffer data columns, after splitting into components. More...

virtual bool	writeBuffered ()
	Write buffered data. More...

void	writeBufferContents (Ostream &os, const coordSet &coords, const char *sep) const
	Write buffered data. More...

void	getBufferLine (DynamicList< scalar > &buf, const coordSet &coords, const label pointi) const
	Get buffered data line (components) More...

fileName	getExpectedPath (const word &fileExt=word::null) const
	Get expected (characteristic) output file name - information only. More...

fileName	getFieldPrefixedPath (const word &fieldName, const word &fileExt=word::null) const
	Get field-prefixed output file name. More...

void	checkOpen () const
	Verify that the outputPath_ has been set or FatalError. More...

virtual bool	merge () const
	Perform any merging if not already upToDate (parallel) or simply mark as being up-to-date. More...

template<class Type >
tmp< Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type >> &tfield) const

template<class Type >
fileName	writeTemplate (const word &fieldName, const Field< Type > &values)
	Dummy templated write operation. More...

template<class Type >
fileName	writeTemplate (const word &fieldName, const List< Field< Type >> &fieldValues)
	Dummy templated write operation. Multiple tracks. More...

	coordSetWriter (const coordSetWriter &)=delete
	No copy construct. More...

void	operator= (const coordSetWriter &)=delete
	No copy assignment. More...

Static Protected Member Functions inherited from coordSetWriter
static void	writeLine (Ostream &, const UList< word > &, const char *sep)
	Write line contents (eg, buffered) More...

static void	writeLine (Ostream &, const UList< scalar > &, const char *sep)
	Write line contents (eg, buffered) More...

template<class Type >
static UPtrList< const Field< Type > >	repackageFields (const Field< Type > &field)
	Repackage field into a UPtrList. More...

template<class Type >
static UPtrList< const Field< Type > >	repackageFields (const UList< Field< Type >> &fieldValues)
	Repackage multiple fields into a UPtrList. More...

template<class Type >
static void	writeTable (Ostream &os, const coordSet &coords, const UList< Type > &values, const char *sep)
	Write coordinates and values. More...

Protected Attributes inherited from coordSetWriter
UPtrList< const coordSet >	coords_
	Reference to coordinate set(s) More...

List< scalarField >	trackTimes_
	Track times (eg, streamlines), one per coords_ entry. More...

bool	upToDate_
	The content is up-to-date? More...

bool	wroteGeom_
	Track if geometry has been written since the last open. More...

bool	buffering_
	Writer with buffering output. More...

bool	useTracks_
	Prefer tracks to points during single set writing. More...

bool	useTimeDir_
	Insert additional time sub-directory in the output path. More...

bool	verbose_
	Additional output verbosity. More...

label	nFields_
	The number of fields. More...

instant	currTime_
	The current time value/name. More...

fileName	outputPath_
	The full output directory and file (coords) name. More...

scalar	geometryScale_
	Output geometry scaling after rotate/translate. More...

point	geometryCentre_
	The centre of rotation (untranslate, translate) More...

coordSystem::cartesian	geometryTransform_
	Local coordinate system transformation. More...

dictionary	fieldLevel_
	Field level to remove (on output) More...

dictionary	fieldScale_
	Field scaling (on output) More...

DynamicList< word >	labelNames_

PtrDynList< Field< label > >	labelFields_

DynamicList< word >	scalarNames_

PtrDynList< Field< scalar > >	scalarFields_

DynamicList< word >	vectorNames_

PtrDynList< Field< vector > >	vectorFields_

DynamicList< word >	sphericalTensorNames_

PtrDynList< Field< sphericalTensor > >	sphericalTensorFields_

DynamicList< word >	symmTensorNames_

PtrDynList< Field< symmTensor > >	symmTensorFields_

DynamicList< word >	tensorNames_

PtrDynList< Field< tensor > >	tensorFields_

Detailed Description

Write coordSet(s) as Abaqus point fields.

Example usage

T
{
    type        sets;
    setFormat   abaqus;
    fields      (T);
    sets
    {
        ...
    }
}

Optional format options

formatOptions
{
    abaqus
    {
        format          ascii;

        // Optional entries

        // Custom header: $ entries are substituions
        header
        (
            "** OpenFOAM abaqus output"
            "** Project $FOAM_CASE"
            "** File $FILE_NAME"
            "** $FIELD_NAME Time t=$TIME"
        );

        // Write geometry in addition to field data
        writeGeometry   yes;

        // Null value when sample value is not found
        // Default is scalar::min
        nullValue       0;

        // Insert additional time sub-directory in the output path
        // - yes : postProcessing/<fo-name>/<time>/<file>
        // - no  : postProcessing/<fo-name>/<file>
        useTimeDir      no;

        // Available when 'useTimeDir' is 'no' to disambiguate file names

        // Time base for output file names:
        // - 'time'      : <base>.inp_<field>.<time>
        // - 'iteration' : <base>.inp_<field>.<iteration>
        timeBase        iteration;

        // Optional start counters when using timeBase iteration
        writeIndex
        (
            T 1
        );


        ...
    }
}

Source files

Definition at line 114 of file abaqusCoordSetWriter.H.

Member Enumeration Documentation

◆ timeBase

enum timeBase

strong

Enumeration for time base.

Enumerator
time
iter

Definition at line 125 of file abaqusCoordSetWriter.H.

Constructor & Destructor Documentation

◆ abaqusWriter() [1/4]

abaqusWriter ( )

Default construct.

Definition at line 118 of file abaqusCoordSetWriter.C.

◆ abaqusWriter() [2/4]

abaqusWriter ( const dictionary & options )

explicit

Default construct with specified options.

Definition at line 130 of file abaqusCoordSetWriter.C.

References Enum< EnumType >::readIfPresent(), and dictionary::readIfPresent().

Here is the call graph for this function:

◆ abaqusWriter() [3/4]

abaqusWriter	(	const coordSet &	coords,
		const fileName &	outputPath,
		const dictionary &	options = `dictionary()`
	)

Construct from components.

Definition at line 157 of file abaqusCoordSetWriter.C.

◆ abaqusWriter() [4/4]

abaqusWriter	(	const UPtrList< coordSet > &	tracks,
		const fileName &	outputPath,
		const dictionary &	options = `dictionary()`
	)

Construct from components.

Definition at line 170 of file abaqusCoordSetWriter.C.

◆ ~abaqusWriter()

~abaqusWriter ( )

virtual

Destructor. Calls close()

Definition at line 184 of file abaqusCoordSetWriter.C.

Member Function Documentation

◆ TypeNameNoDebug()

TypeNameNoDebug ( "abaqus" )

Runtime type information (no debug)

◆ path()

Foam::fileName path ( ) const

virtual

Characteristic output file name - information only.

Implements coordSetWriter.

Definition at line 192 of file abaqusCoordSetWriter.C.

◆ declareCoordSetWriterWriteMethod() [1/6]

declareCoordSetWriterWriteMethod ( label )

◆ declareCoordSetWriterWriteMethod() [2/6]

declareCoordSetWriterWriteMethod ( scalar )

◆ declareCoordSetWriterWriteMethod() [3/6]

declareCoordSetWriterWriteMethod ( vector )

◆ declareCoordSetWriterWriteMethod() [4/6]

declareCoordSetWriterWriteMethod ( sphericalTensor )

◆ declareCoordSetWriterWriteMethod() [5/6]

declareCoordSetWriterWriteMethod ( symmTensor )

◆ declareCoordSetWriterWriteMethod() [6/6]

declareCoordSetWriterWriteMethod ( tensor )

◆ writeTemplate() [1/2]

Foam::fileName writeTemplate	(	const word &	fieldName,
		const Field< Type > &	values
	)

Definition at line 244 of file abaqusCoordSetWriter.C.

References dictionary::add(), Foam::component(), Foam::endl(), field(), forAll, Foam::Info, Foam::isDir(), fileName::lessExt(), Foam::mkDir(), Foam::expressions::Detail::nComponents(), Foam::nl, fileName::null, path(), fileName::path(), s, timeName, Foam::HashTableOps::values(), and writeGeometry().

Here is the call graph for this function:

◆ writeTemplate() [2/2]

Foam::fileName writeTemplate	(	const word &	fieldName,
		const List< Field< Type >> &	fieldValues
	)

Definition at line 354 of file abaqusCoordSetWriter.C.

References Foam::endl(), Foam::Info, Foam::isDir(), fileName::lessExt(), Foam::mkDir(), Foam::nl, fileName::null, path(), fileName::path(), and writeGeometry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/coordSet/writers/abaqus/abaqusCoordSetWriter.H
src/meshTools/coordSet/writers/abaqus/abaqusCoordSetWriter.C

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ timeBase

Constructor & Destructor Documentation

◆ abaqusWriter() [1/4]

◆ abaqusWriter() [2/4]

◆ abaqusWriter() [3/4]

◆ abaqusWriter() [4/4]

◆ ~abaqusWriter()

Member Function Documentation

◆ TypeNameNoDebug()

◆ path()

◆ declareCoordSetWriterWriteMethod() [1/6]

◆ declareCoordSetWriterWriteMethod() [2/6]

◆ declareCoordSetWriterWriteMethod() [3/6]

◆ declareCoordSetWriterWriteMethod() [4/6]

◆ declareCoordSetWriterWriteMethod() [5/6]

◆ declareCoordSetWriterWriteMethod() [6/6]

◆ writeTemplate() [1/2]

◆ writeTemplate() [2/2]
