boundaryAdjointContributionIncompressible Class Reference

Contributions of objective function differentiation to adjoint boundary conditions for incompressible flows. More...

Inheritance diagram for boundaryAdjointContributionIncompressible:

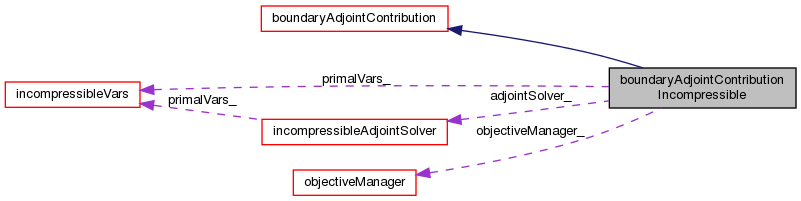

Collaboration diagram for boundaryAdjointContributionIncompressible:

Public Member Functions
	TypeName ("incompressible")
	Runtime type information. More...
	boundaryAdjointContributionIncompressible (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Construct from components. More...
virtual	~boundaryAdjointContributionIncompressible ()=default
	Destructor. More...
tmp< scalarField >	pressureSource ()
tmp< vectorField >	velocitySource ()
tmp< vectorField >	tangentVelocitySource ()
tmp< vectorField >	normalVelocitySource ()
tmp< scalarField >	energySource ()
tmp< scalarField >	adjointTMVariable1Source ()
tmp< scalarField >	adjointTMVariable2Source ()
tmp< scalarField >	dJdnut ()
tmp< tensorField >	dJdGradU ()
tmp< scalarField >	momentumDiffusion ()
tmp< scalarField >	laminarDiffusivity ()
tmp< scalarField >	thermalDiffusion ()
tmp< scalarField >	wallDistance ()
tmp< scalarField >	TMVariable1Diffusion ()
tmp< scalarField >	TMVariable2Diffusion ()
tmp< scalarField >	TMVariable1 ()
tmp< scalarField >	TMVariable2 ()
const fvPatchVectorField &	Ub () const
const fvPatchScalarField &	pb () const
const fvsPatchScalarField &	phib () const
const fvPatchScalarField &	turbulentDiffusivity () const
const fvPatchVectorField &	Uab () const
const fvPatchScalarField &	pab () const
const fvsPatchScalarField &	phiab () const
const word	primalSolverName () const
const word	adjointSolverName () const
const incompressibleVars &	primalVars () const
const incompressibleAdjointVars &	adjointVars () const
objectiveManager &	getObjectiveManager ()
template<class returnType , class sourceType , class castType >
Foam::tmp< Foam::Field< returnType > >	sumContributions (PtrList< sourceType > &sourceList, const fvPatchField< returnType > &(castType::*boundaryFunction)(const label))
Public Member Functions inherited from boundaryAdjointContribution
	TypeName ("boundaryAdjointContribution")
	Runtime type information. More...
	declareRunTimeSelectionTable (autoPtr, boundaryAdjointContribution, dictionary,(const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch),(managerName, adjointSolverName, simulationType, patch))
	boundaryAdjointContribution (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Construct from components. More...
virtual	~boundaryAdjointContribution ()=default
	Destructor. More...

Protected Member Functions
template<class returnType , class sourceType , class castType >
tmp< Field< returnType > >	sumContributions (PtrList< sourceType > &sourceList, const fvPatchField< returnType > &(castType::*boundaryFunction)(const label))

Protected Attributes
objectiveManager &	objectiveManager_
const incompressibleVars &	primalVars_
const incompressibleAdjointSolver &	adjointSolver_
	Note: getting a reference to the adjoint vars in the constructor of boundaryAdjointContributionIncompressible is dangerous since the autoPtr that holds them has not been completed yet. Instead, get a reference to the solver and grab the adjoint vars from there, when necessary. More...
Protected Attributes inherited from boundaryAdjointContribution
const fvPatch &	patch_

Additional Inherited Members
Static Public Member Functions inherited from boundaryAdjointContribution
static autoPtr< boundaryAdjointContribution >	New (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Return a reference to the selected turbulence model. More...

Detailed Description

Contributions of objective function differentiation to adjoint boundary conditions for incompressible flows.

Source files

• boundaryAdjointContributionIncompressible.H
• boundaryAdjointContributionIncompressible.C

Definition at line 57 of file boundaryAdjointContributionIncompressible.H.

Constructor & Destructor Documentation

boundaryAdjointContributionIncompressible()

boundaryAdjointContributionIncompressible	(	const word &	managerName,
		const word &	adjointSolverName,
		const word &	simulationType,
		const fvPatch &	patch
	)

Construct from components.

Definition at line 47 of file boundaryAdjointContributionIncompressible.C.

~boundaryAdjointContributionIncompressible()

virtual ~boundaryAdjointContributionIncompressible ( )

virtualdefault

Destructor.

Member Function Documentation

sumContributions() [1/2]

tmp<Field<returnType> > sumContributions ( PtrList< sourceType > &  sourceList, const fvPatchField< returnType > &(castType::*)(const label)  boundaryFunction  )

protected

Referenced by boundaryAdjointContributionIncompressible::adjointTMVariable1Source(), boundaryAdjointContributionIncompressible::adjointTMVariable2Source(), boundaryAdjointContributionIncompressible::dJdGradU(), boundaryAdjointContributionIncompressible::dJdnut(), boundaryAdjointContributionIncompressible::energySource(), boundaryAdjointContributionIncompressible::normalVelocitySource(), boundaryAdjointContributionIncompressible::pressureSource(), boundaryAdjointContributionIncompressible::tangentVelocitySource(), and boundaryAdjointContributionIncompressible::velocitySource().

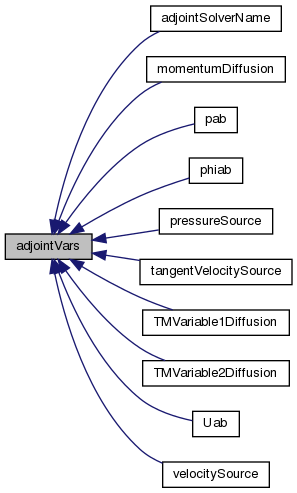

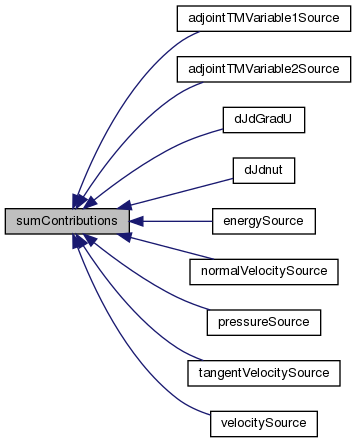

Here is the caller graph for this function:

TypeName()

TypeName

(

"incompressible"

)

Runtime type information.

pressureSource()

tmp< scalarField > pressureSource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 102 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), objectiveIncompressible::boundarydJdvn(), objectiveManager::getObjectiveFunctions(), fvPatch::index(), fvPatch::nf(), boundaryAdjointContributionIncompressible::objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContributionIncompressible::sumContributions().

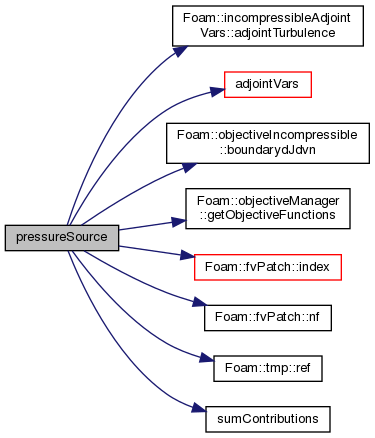

Here is the call graph for this function:

velocitySource()

tmp< vectorField > velocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 82 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), objectiveIncompressible::boundarydJdv(), objectiveManager::getObjectiveFunctions(), fvPatch::index(), boundaryAdjointContributionIncompressible::objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

tangentVelocitySource()

tmp< vectorField > tangentVelocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 127 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), objectiveIncompressible::boundarydJdvt(), objectiveManager::getObjectiveFunctions(), fvPatch::index(), fvPatch::nf(), boundaryAdjointContributionIncompressible::objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContributionIncompressible::sumContributions().

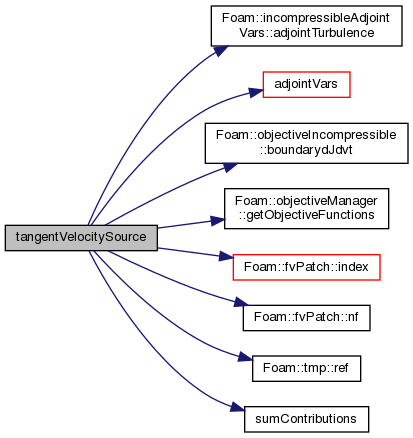

Here is the call graph for this function:

normalVelocitySource()

tmp< vectorField > normalVelocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 155 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdp(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

energySource()

tmp< scalarField > energySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 167 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdT(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

adjointTMVariable1Source()

tmp< scalarField > adjointTMVariable1Source ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 180 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdTMvar1(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

adjointTMVariable2Source()

tmp< scalarField > adjointTMVariable2Source ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 193 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdTMvar2(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

dJdnut()

tmp< scalarField > dJdnut ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 206 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdnut(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

dJdGradU()

tmp< tensorField > dJdGradU ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 218 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdGradU(), objectiveManager::getObjectiveFunctions(), boundaryAdjointContributionIncompressible::objectiveManager_, and boundaryAdjointContributionIncompressible::sumContributions().

Here is the call graph for this function:

momentumDiffusion()

tmp< scalarField > momentumDiffusion ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 229 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), fvPatch::index(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

laminarDiffusivity()

tmp< scalarField > laminarDiffusivity ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 236 of file boundaryAdjointContributionIncompressible.C.

References fvPatch::index(), nu, boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, tmp< T >::ref(), fvPatch::size(), incompressibleVars::turbulence(), and Foam::Zero.

Here is the call graph for this function:

thermalDiffusion()

tmp< scalarField > thermalDiffusion ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 250 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, fvPatch::size(), WarningInFunction, and Foam::Zero.

Here is the call graph for this function:

wallDistance()

tmp< scalarField > wallDistance ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 269 of file boundaryAdjointContributionIncompressible.C.

References fvPatch::index(), boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, and incompressibleVars::turbulence().

Here is the call graph for this function:

TMVariable1Diffusion()

tmp< scalarField > TMVariable1Diffusion ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 276 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), fvPatch::index(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

TMVariable2Diffusion()

tmp< scalarField > TMVariable2Diffusion ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 285 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), boundaryAdjointContributionIncompressible::adjointVars(), fvPatch::index(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

TMVariable1()

tmp< scalarField > TMVariable1 ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 292 of file boundaryAdjointContributionIncompressible.C.

References fvPatch::index(), boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, and incompressibleVars::RASModelVariables().

Here is the call graph for this function:

TMVariable2()

tmp< scalarField > TMVariable2 ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 300 of file boundaryAdjointContributionIncompressible.C.

References fvPatch::index(), boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, and incompressibleVars::RASModelVariables().

Here is the call graph for this function:

Ub()

const fvPatchVectorField & Ub ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 308 of file boundaryAdjointContributionIncompressible.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, and incompressibleVars::U().

Here is the call graph for this function:

pb()

const fvPatchScalarField & pb ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 314 of file boundaryAdjointContributionIncompressible.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), incompressibleVars::p(), boundaryAdjointContribution::patch_, and boundaryAdjointContributionIncompressible::primalVars_.

Here is the call graph for this function:

phib()

const fvsPatchScalarField & phib ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 321 of file boundaryAdjointContributionIncompressible.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), boundaryAdjointContribution::patch_, incompressibleVars::phi(), and boundaryAdjointContributionIncompressible::primalVars_.

Here is the call graph for this function:

turbulentDiffusivity()

const fvPatchScalarField & turbulentDiffusivity ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 328 of file boundaryAdjointContributionIncompressible.C.

References fvPatch::index(), boundaryAdjointContribution::patch_, boundaryAdjointContributionIncompressible::primalVars_, and incompressibleVars::RASModelVariables().

Here is the call graph for this function:

Uab()

const fvPatchVectorField & Uab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 338 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), boundaryAdjointContribution::patch_, and incompressibleAdjointMeanFlowVars::UaInst().

Here is the call graph for this function:

pab()

const fvPatchScalarField & pab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 344 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), incompressibleAdjointMeanFlowVars::paInst(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

phiab()

const fvsPatchScalarField & phiab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 351 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvPatch::index(), boundaryAdjointContribution::patch_, and incompressibleAdjointMeanFlowVars::phiaInst().

Here is the call graph for this function:

primalSolverName()

const word primalSolverName ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 357 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::primalVars_, and variablesSet::solverName().

Here is the call graph for this function:

adjointSolverName()

const word adjointSolverName ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 363 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::adjointVars(), and variablesSet::solverName().

Here is the call graph for this function:

primalVars()

const incompressibleVars & primalVars

(

)

const

Definition at line 370 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::primalVars_.

adjointVars()

const incompressibleAdjointVars & adjointVars

(

)

const

Definition at line 377 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::adjointSolver_, and incompressibleAdjointSolver::getAdjointVars().

Referenced by boundaryAdjointContributionIncompressible::adjointSolverName(), boundaryAdjointContributionIncompressible::momentumDiffusion(), boundaryAdjointContributionIncompressible::pab(), boundaryAdjointContributionIncompressible::phiab(), boundaryAdjointContributionIncompressible::pressureSource(), boundaryAdjointContributionIncompressible::tangentVelocitySource(), boundaryAdjointContributionIncompressible::TMVariable1Diffusion(), boundaryAdjointContributionIncompressible::TMVariable2Diffusion(), boundaryAdjointContributionIncompressible::Uab(), and boundaryAdjointContributionIncompressible::velocitySource().

Here is the call graph for this function:

Here is the caller graph for this function:

getObjectiveManager()

objectiveManager & getObjectiveManager

(

)

Definition at line 384 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContributionIncompressible::objectiveManager_.

sumContributions() [2/2]

Foam::tmp<Foam::Field<returnType> > sumContributions	(	PtrList< sourceType > &	sourceList,
		const fvPatchField< returnType > &(castType::*)(const label)	boundaryFunction
	)

Definition at line 28 of file boundaryAdjointContributionIncompressibleTemplates.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

objectiveManager_

objectiveManager& objectiveManager_

protected

Definition at line 86 of file boundaryAdjointContributionIncompressible.H.

Referenced by boundaryAdjointContributionIncompressible::adjointTMVariable1Source(), boundaryAdjointContributionIncompressible::adjointTMVariable2Source(), boundaryAdjointContributionIncompressible::dJdGradU(), boundaryAdjointContributionIncompressible::dJdnut(), boundaryAdjointContributionIncompressible::energySource(), boundaryAdjointContributionIncompressible::getObjectiveManager(), boundaryAdjointContributionIncompressible::normalVelocitySource(), boundaryAdjointContributionIncompressible::pressureSource(), boundaryAdjointContributionIncompressible::tangentVelocitySource(), and boundaryAdjointContributionIncompressible::velocitySource().

primalVars_

const incompressibleVars& primalVars_

protected

Definition at line 88 of file boundaryAdjointContributionIncompressible.H.

Referenced by boundaryAdjointContributionIncompressible::laminarDiffusivity(), boundaryAdjointContributionIncompressible::pb(), boundaryAdjointContributionIncompressible::phib(), boundaryAdjointContributionIncompressible::primalSolverName(), boundaryAdjointContributionIncompressible::primalVars(), boundaryAdjointContributionIncompressible::TMVariable1(), boundaryAdjointContributionIncompressible::TMVariable2(), boundaryAdjointContributionIncompressible::turbulentDiffusivity(), boundaryAdjointContributionIncompressible::Ub(), and boundaryAdjointContributionIncompressible::wallDistance().

adjointSolver_

const incompressibleAdjointSolver& adjointSolver_

protected

Note: getting a reference to the adjoint vars in the constructor of boundaryAdjointContributionIncompressible is dangerous since the autoPtr that holds them has not been completed yet. Instead, get a reference to the solver and grab the adjoint vars from there, when necessary.

Definition at line 97 of file boundaryAdjointContributionIncompressible.H.

Referenced by boundaryAdjointContributionIncompressible::adjointVars().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/boundaryAdjointContributions/boundaryAdjointContributionIncompressible/boundaryAdjointContributionIncompressible.H
• src/optimisation/adjointOptimisation/adjoint/boundaryAdjointContributions/boundaryAdjointContributionIncompressible/boundaryAdjointContributionIncompressible.C
• src/optimisation/adjointOptimisation/adjoint/boundaryAdjointContributions/boundaryAdjointContributionIncompressible/boundaryAdjointContributionIncompressibleTemplates.C
