Calculation of adjoint based sensitivities at vol B-Splines control points using the SI or e-SI approach (determined by surface sensitivities) More...

Inheritance diagram for sensitivityVolBSplines:

[legend]

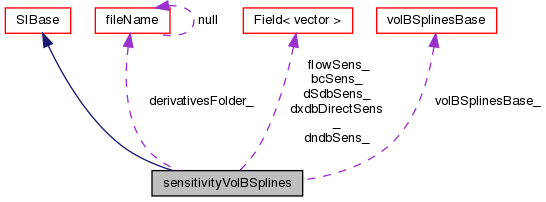

Collaboration diagram for sensitivityVolBSplines:

[legend]

Public Member Functions
	TypeName ("volumetricBSplines")
	Runtime type information. More...

	sensitivityVolBSplines (const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver)
	Construct from components. More...

virtual	~sensitivityVolBSplines ()=default
	Destructor. More...

virtual void	assembleSensitivities ()
	Assemble sensitivities. More...

virtual void	clearSensitivities ()
	Zero sensitivity fields and their constituents. More...

virtual void	write (const word &baseName=word::null)
	Write sensitivities to file. More...

Public Member Functions inherited from SIBase
	TypeName ("volumetricBSplinesFI")
	Runtime type information. More...

	SIBase (const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver)
	Construct from components. More...

virtual	~SIBase ()=default
	Destructor. More...

virtual bool	readDict (const dictionary &dict)
	Read dict if changed. More...

virtual void	accumulateIntegrand (const scalar dt)
	Accumulate sensitivity integrands. More...

const sensitivitySurface &	getSurfaceSensitivities () const
	Return reference to underlaying surface sensitivities. More...

Public Member Functions inherited from shapeSensitivities
	TypeName ("shapeSensitivities")
	Runtime type information. More...

	shapeSensitivities (const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver)
	Construct from components. More...

virtual	~shapeSensitivities ()=default
	Destructor. More...

Public Member Functions inherited from adjointSensitivity
	TypeName ("adjointSensitivity")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, adjointSensitivity, dictionary,(const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver),(mesh, dict, adjointSolver))

	adjointSensitivity (const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver)
	Construct from components. More...

virtual	~adjointSensitivity ()=default
	Destructor. More...

const incompressibleVars &	primalVars () const
	Get primal variables. More...

const incompressibleAdjointVars &	adjointVars () const
	Get adjoint variables. More...

const incompressibleAdjointSolver &	adjointSolver () const
	Get adjoint solver. More...

virtual const scalarField &	calculateSensitivities ()
	Calculates and returns sensitivity fields. More...

const scalarField &	getSensitivities () const
	Returns the sensitivity fields. More...

tmp< volTensorField >	computeGradDxDbMultiplier ()
	Compute the volTensorField multiplying grad(dxdb) for the volume-based approach to compute shape sensitivity derivatives. More...

tmp< volVectorField >	adjointMeshMovementSource ()
	Compute source term for adjoint mesh movement equation. More...

Public Member Functions inherited from sensitivity
	TypeName ("sensitivity")
	Runtime type information. More...

	sensitivity (const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

virtual	~sensitivity ()=default
	Destructor. More...

const dictionary &	dict () const
	Return the construction dictionary. More...

virtual void	computeDerivativesSize ()
	Compute design variables number. Does nothing in the base. More...

Protected Member Functions
void	computeObjectiveContributions ()

void	computeBCContributions ()

Protected Member Functions inherited from SIBase
void	read ()
	Read options from dict. More...

Protected Member Functions inherited from shapeSensitivities
virtual void	accumulateDirectSensitivityIntegrand (const scalar dt)
	Accumulate direct sensitivities. More...

virtual void	accumulateBCSensitivityIntegrand (const scalar dt)
	Accumulate sensitivities enamating from the boundary conditions. More...

tmp< boundaryVectorField >	dvdbMult () const
	Compute multiplier of dv_i/db. More...

Protected Attributes
volBSplinesBase &	volBSplinesBase_
	Reference to underlaying volumetric B-Splines morpher. More...

vectorField	flowSens_
	Flow related term. More...

vectorField	dSdbSens_
	Term depending on delta(n dS)/delta b. More...

vectorField	dndbSens_
	Term depending on delta (n)/delta b. More...

vectorField	dxdbDirectSens_
	Term depending on dxdb for objective functions directly depending on x. More...

vectorField	bcSens_
	Term dependng on the differentiation of boundary conditions. More...

fileName	derivativesFolder_

Protected Attributes inherited from SIBase
sensitivitySurface	surfaceSensitivity_
	Surface sensitivities. More...

bool	includeObjective_
	Whether to include direct sensitivities or not. More...

bool	writeSensitivityMap_
	Write sensitivity map upon write. More...

Protected Attributes inherited from shapeSensitivities
autoPtr< boundaryVectorField >	dSfdbMult_
	Fields related to direct sensitivities. More...

autoPtr< boundaryVectorField >	dnfdbMult_

autoPtr< boundaryVectorField >	dxdbDirectMult_

autoPtr< boundaryVectorField >	bcDxDbMult_

Protected Attributes inherited from adjointSensitivity
scalarField	derivatives_

incompressibleAdjointSolver &	adjointSolver_

const incompressibleVars &	primalVars_

incompressibleAdjointVars &	adjointVars_

objectiveManager &	objectiveManager_

Protected Attributes inherited from sensitivity
const fvMesh &	mesh_

dictionary	dict_

autoPtr< volScalarField >	fieldSensPtr_

Additional Inherited Members
Static Public Member Functions inherited from adjointSensitivity
static autoPtr< adjointSensitivity >	New (const fvMesh &mesh, const dictionary &dict, incompressibleAdjointSolver &adjointSolver)
	Return a reference to the selected turbulence model. More...

Detailed Description

Calculation of adjoint based sensitivities at vol B-Splines control points using the SI or e-SI approach (determined by surface sensitivities)

Source files

Definition at line 53 of file sensitivityVolBSplinesIncompressible.H.

Constructor & Destructor Documentation

◆ sensitivityVolBSplines()

sensitivityVolBSplines	(	const fvMesh &	mesh,
		const dictionary &	dict,
		incompressibleAdjointSolver &	adjointSolver
	)

Construct from components.

Definition at line 136 of file sensitivityVolBSplinesIncompressible.C.

References Foam::mkDir(), and Foam::Zero.

Here is the call graph for this function:

◆ ~sensitivityVolBSplines()

virtual ~sensitivityVolBSplines ( )

virtualdefault

Destructor.

Member Function Documentation

◆ computeObjectiveContributions()

void computeObjectiveContributions ( )

protected

Definition at line 47 of file sensitivityVolBSplinesIncompressible.C.

References volBSplinesBase::boundControlPointMovement(), volBSplinesBase::boxesRef(), sensitivityVolBSplines::dndbSens_, shapeSensitivities::dnfdbMult_, sensitivityVolBSplines::dSdbSens_, shapeSensitivities::dSfdbMult_, shapeSensitivities::dxdbDirectMult_, sensitivityVolBSplines::dxdbDirectSens_, forAll, Foam::gSum(), SIBase::includeObjective_, UList< T >::size(), UPtrList< T >::size(), sensitivityVolBSplines::volBSplinesBase_, and Foam::Zero.

Referenced by sensitivityVolBSplines::assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeBCContributions()

void computeBCContributions ( )

protected

Definition at line 109 of file sensitivityVolBSplinesIncompressible.C.

References shapeSensitivities::bcDxDbMult_, sensitivityVolBSplines::bcSens_, volBSplinesBase::boundControlPointMovement(), volBSplinesBase::boxesRef(), forAll, UList< T >::size(), and sensitivityVolBSplines::volBSplinesBase_.

Referenced by sensitivityVolBSplines::assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "volumetricBSplines" )

Runtime type information.

◆ assembleSensitivities()

void assembleSensitivities ( )

virtual

Assemble sensitivities.

Implements SIBase.

Definition at line 172 of file sensitivityVolBSplinesIncompressible.C.

Here is the call graph for this function:

◆ clearSensitivities()

void clearSensitivities ( )

virtual

Zero sensitivity fields and their constituents.

Reimplemented from SIBase.

Definition at line 238 of file sensitivityVolBSplinesIncompressible.C.

References sensitivityVolBSplines::bcSens_, SIBase::clearSensitivities(), sensitivityVolBSplines::dndbSens_, sensitivityVolBSplines::dSdbSens_, sensitivityVolBSplines::dxdbDirectSens_, and sensitivityVolBSplines::flowSens_.

Here is the call graph for this function:

◆ write()

void write ( const word & baseName = word::null )

virtual

Write sensitivities to file.

Reimplemented from SIBase.

Definition at line 250 of file sensitivityVolBSplinesIncompressible.C.

References adjointSensitivity::adjointVars_, sensitivityVolBSplines::bcSens_, volBSplinesBase::boxesRef(), IOstream::defaultPrecision(), adjointSensitivity::derivatives_, sensitivityVolBSplines::derivativesFolder_, sensitivityVolBSplines::dndbSens_, sensitivityVolBSplines::dSdbSens_, sensitivityVolBSplines::dxdbDirectSens_, Foam::endl(), sensitivityVolBSplines::flowSens_, forAll, Foam::Info, UPstream::master(), Foam::max(), sensitivity::mesh_, Foam::name(), Foam::setw(), UList< T >::size(), UPtrList< T >::size(), variablesSet::solverName(), fvMesh::time(), Time::timeName(), sensitivityVolBSplines::volBSplinesBase_, and SIBase::write().

Here is the call graph for this function:

Member Data Documentation

◆ volBSplinesBase_

volBSplinesBase& volBSplinesBase_

protected

Reference to underlaying volumetric B-Splines morpher.

Definition at line 64 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::computeBCContributions(), sensitivityVolBSplines::computeObjectiveContributions(), and sensitivityVolBSplines::write().

◆ flowSens_

vectorField flowSens_

protected

Flow related term.

Definition at line 69 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::clearSensitivities(), and sensitivityVolBSplines::write().

◆ dSdbSens_

vectorField dSdbSens_

protected

Term depending on delta(n dS)/delta b.

Definition at line 74 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::clearSensitivities(), sensitivityVolBSplines::computeObjectiveContributions(), and sensitivityVolBSplines::write().

◆ dndbSens_

vectorField dndbSens_

protected

Term depending on delta (n)/delta b.

Definition at line 79 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::clearSensitivities(), sensitivityVolBSplines::computeObjectiveContributions(), and sensitivityVolBSplines::write().

◆ dxdbDirectSens_

vectorField dxdbDirectSens_

protected

Term depending on dxdb for objective functions directly depending on x.

Definition at line 85 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::clearSensitivities(), sensitivityVolBSplines::computeObjectiveContributions(), and sensitivityVolBSplines::write().

◆ bcSens_

vectorField bcSens_

protected

Term dependng on the differentiation of boundary conditions.

Definition at line 90 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::assembleSensitivities(), sensitivityVolBSplines::clearSensitivities(), sensitivityVolBSplines::computeBCContributions(), and sensitivityVolBSplines::write().

◆ derivativesFolder_

fileName derivativesFolder_

protected

Definition at line 92 of file sensitivityVolBSplinesIncompressible.H.

Referenced by sensitivityVolBSplines::write().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/sensitivityVolBSplines/sensitivityVolBSplinesIncompressible.H
